Edge Protection Barrier

Name: Edge Protection Barrier
SKU: WO737671
Price: 56.26 GBP

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Highlights

Robust mesh panel system - Galvanised steel with 6mm wires in a 3-2-2 formation for maximum durability.
Modular compatibility - Standard Z-design fits HERMEQ and similar systems with full interchangeability.
Custom powder-coating - Available in stock colours or customised to suit corporate branding.

Alternative Products

SKU WO737671

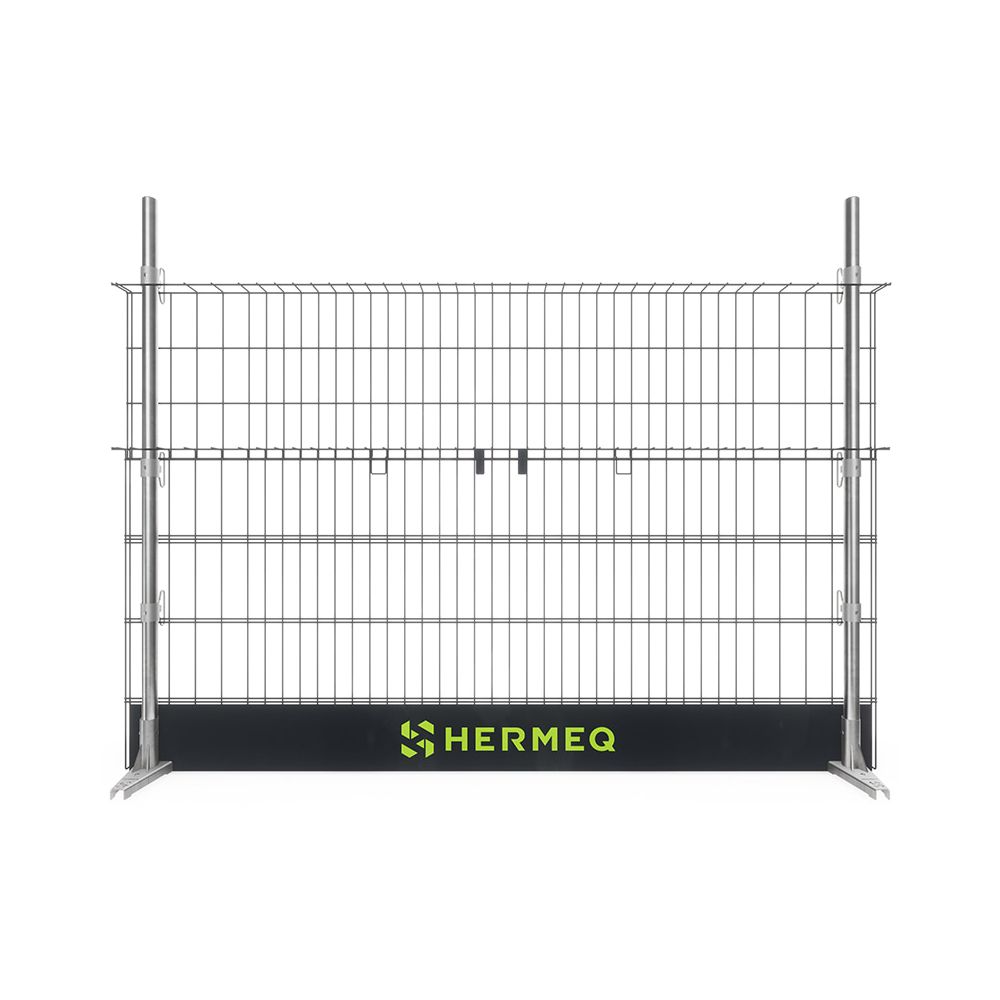

HERMEQ’s mesh edge protection barrier offers rapid, tool-free installation for temporary edge protection on construction sites. Made in the UK with galvanised steel and integrated toe boards, it delivers strength, durability and full compliance. Compatible with HERMEQ posts and sliders, it forms a safe, modular perimeter system.

Powder-coated finishes and height enhancements are available for branding or increased temporary fall protection.

Details

HERMEQ’s edge protection barrier is a core component of our temporary edge protection system, providing quick-to-deploy perimeter safety where temporary fall protection is critical. Manufactured from galvanised mesh and integrated toe boards, this barrier system meets all British safety standards and is built to handle the demands of modern construction sites. Designed to be installed around the perimeter of floor slabs, lift shafts, stairwells, and scaffold-free platforms, it helps mitigate fall hazards and prevents debris from exiting the working area. The standard Z-profile design ensures full compatibility with HERMEQ edge protection posts and sliders, while also integrating with other similar systems.

3-2-2 mesh pattern - 6mm galvanised steel wires positioned for maximum panel integrity.
Fast, modular installation - Slots into HERMEQ edge protection posts using retaining slide clips.
Customisable finish - Choose from HERMEQ stock colours or request corporate branding and colours.
Meets safety standards - British Standards compliant for edge and fall protection on active sites.
Reusable and tough - Built to withstand repeated use in high-traffic site environments.

Each panel measures 2600mm long and 1150mm high, with an overlapping configuration for seamless perimeter coverage. For taller protection needs, the panel pairs with our enhancement barrier to extend system height to 1.7m — just pair with 1.9m HERMEQ posts for full compliance. This barrier provides reliable temporary edge protection across multi-storey builds, rebar slab work, or large footprint developments where worker safety is paramount. The built-in kickplate prevents small debris from escaping, while the mesh structure ensures high-visibility site control. It's ideal for clients looking to safeguard personnel while maintaining flexibility in their protection layout.

HERMEQ stocks a wide range of equipment for Working at Height including Edge Protection Systems, Fall Arrest Systems, and Harnesses & Lanyards conforming to all required safety specifications and regulations.

Need any help? Contact HERMEQ Today.

Contact our team via phone 0800 043 2520, email sales@hermeq.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.

Additional Details

The HERMEQ edge protection barrier system is widely used across a range of construction sectors for both short-term and multi-phase developments.

Popular Use Cases:

Floor slab perimeters on multi-storey residential and commercial buildings
Temporary fall protection around lift shafts, staircases, and M&E voids
Edge protection on concrete platforms and exposed upper-level edges
Scaffold-free installations on steelwork or concrete slab builds
Barrier systems on roof access projects or plant room perimeters

In each case, contractors benefit from the product’s ease of install and robust safety features. Combined with HERMEQ’s edge protection posts and retaining sliders, the system enables fast, modular safety perimeter configuration. Additional height can be added using HERMEQ’s enhancement mesh option — especially valuable on sites requiring 1.7m temporary fall protection for regulations or specific risk mitigation strategies. Finish and colours can be tailored to match your project branding, with powder-coating completed in-house at our UK facilities. Highly visible, durable, and standardised, this system is a favourite among site managers needing dependable edge protection without delay.

FAQs

What are the panel dimensions of this edge protection barrier?
Each panel is 2600mm long and 1150mm high, with overlapping capability for continuous temporary edge protection on site.

Is this barrier compatible with other systems?
Yes, the Z-profile design ensures compatibility with HERMEQ posts and most similar systems used across the UK construction industry.

Can I add extra height for higher fall protection?
Absolutely. Pair this barrier with our enhancement mesh to extend the total height to 1.7m. Use 1.9m HERMEQ posts to support the extended barrier height.

Can I use these on scaffold-free sites?
Yes. These barriers can be mounted onto concrete slabs or steelwork using adjustable fixings and bases for non-scaffold environments.

Are custom colours available?
Yes. We powder coat in-house and can match your corporate branding. Please note lead times may vary for bespoke finishes.
