Product Highlights
- Rail-compliant fencing – Designed to meet NR/L2/TRK/5100/1/WP 2015 standards.
- Integrated system – Combines W-section pales, RSA rails, and RSJ posts.
- Planning made easy – Includes online calculator to configure compliant installations.
Alternative Products
SKU PA344332

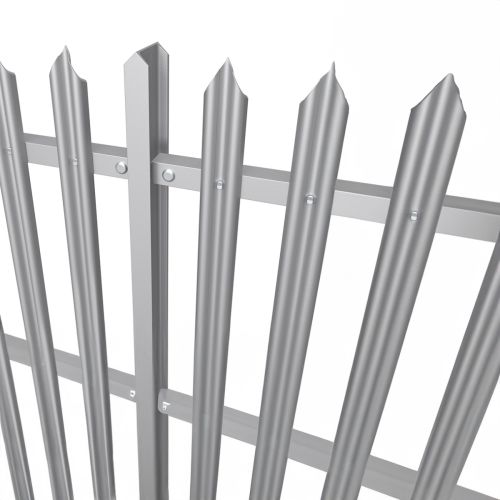

HERMEQ’s Palisade Network Rail Fencing system is a high-security perimeter solution designed for railway, data centre, government, and infrastructure environments. Fully compliant with NR/L2/TRK/5100/1/WP 2015 rev A, the system meets exacting specifications for durability, tamper resistance, and modular installation across challenging ground profiles.
Each fencing bay is constructed with the following components:
- Steel Pales – Corrugated W-section design, 2.5mm thick, extending 225mm above and 150mm below the rail line. Pre-drilled and single-pointed tops (rounded available on request).
- RSA Rails – 45×45×6mm horizontal rails with 10mm face holes for solid pale/post anchoring.
- RSJ Posts – 102×44×2325mm steel posts set at 2.75m intervals, designed with pointed tops.
- Fixings – M8 and M12 bolts with shear nuts for secure installation of all fencing connections.
This integrated palisade system is supplied with galvanised protection to BS EN ISO 1461 or BS EN 10240, and is optionally powder coated in green (RAL6005) or black (RAL9005), with custom RAL colours available upon request. Designed to follow uneven site contours without compromising vertical integrity, the system ensures a strong visual and structural perimeter across varied terrain.
Whether specifying for commercial sites, Network Rail environments, or local authority compounds, HERMEQ’s fencing guarantees ease of installation, component consistency, and price-point suitability for projects of all scales. Users can access the Palisade Railway Calculator to plan bay layouts, post placements, and rail counts with precision.
HERMEQ stock a wide-range of Palisade Ultra, Palisade Standard, Palisade Railway, Safe Mesh and Domestic Railing options to suit every project type.
Need any help? Contact HERMEQ Today.
Contact our team via phone 0800 043 2520, email sales@hermeq.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
- Certified by ISO 9001 and audited by BSI, CE and BRE to guarantee manufacturing integrity.
- W-section pale design increases anti-climb deterrent and strength against mechanical stress.
- Calculator tool ensures correct bay specifications including pale count, post spacing and fixing types.
- Suitable for sectors requiring long-run secure perimeter with minimal maintenance demands.
The Palisade Railway Fencing system integrates seamlessly with HERMEQ’s modular post and rail product line. Its versatile design supports installations over gradients and irregular ground, making it ideal for infrastructure environments. Project planners benefit from easy configuration tools and HERMEQ’s end-to-end UK supply chain to ensure timely delivery and full system compatibility. Optional powder coating adds long-term corrosion resistance and site branding.
Is the palisade railway fencing compliant with Network Rail standards?
Yes, it is certified to NR/L2/TRK/5100/1/WP 2015 rev A.
What is the role of the online calculator?
It allows users to plan fencing layouts with correct components per bay.
Are custom colours available?
Yes, powder coating can be applied in green, black or bespoke RAL colours.
How many pales are in a standard bay?
Each bay contains 17 W-section steel pales with matching RSA rails and RSJ posts.
