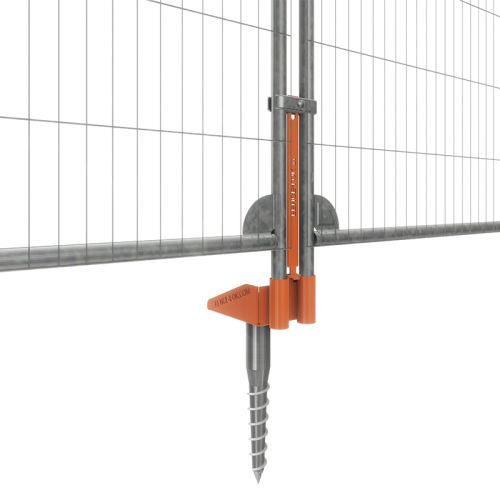

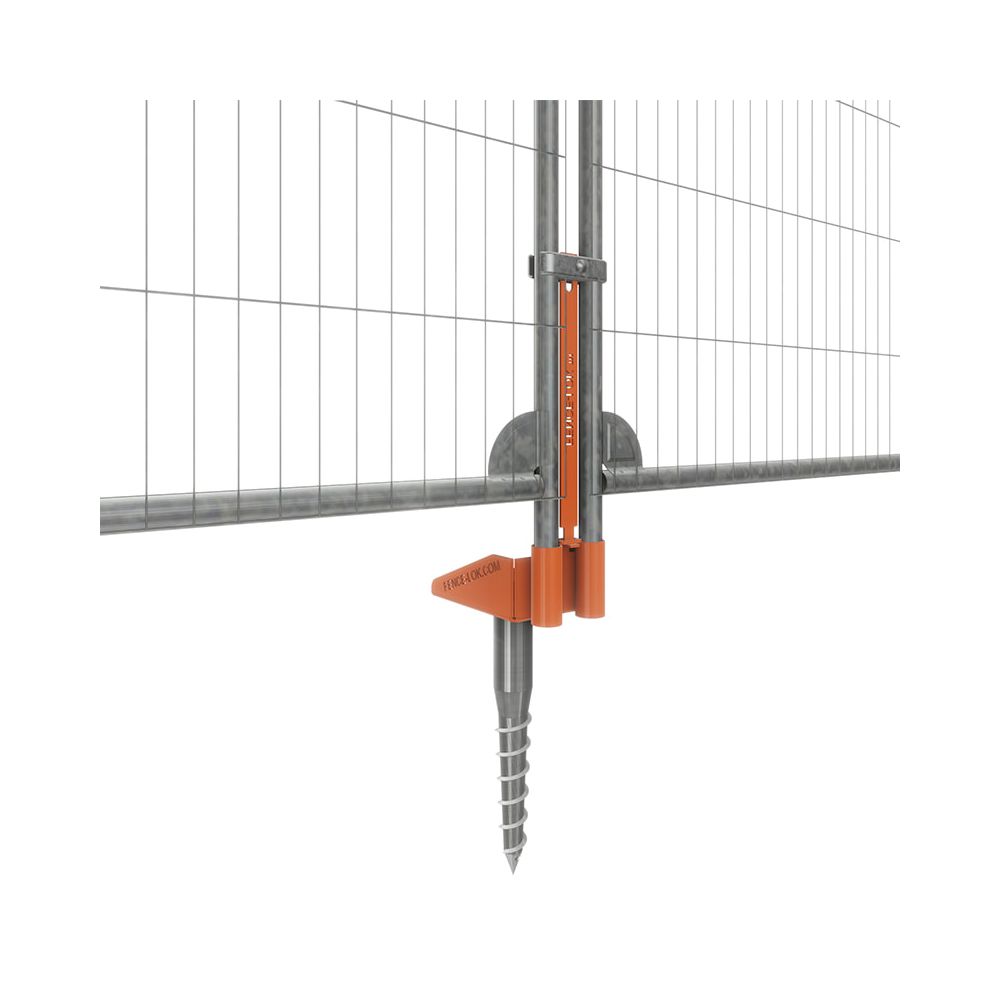

Mesh Fence Feet Locking System

Product Highlights

  • Compact Locking System - Reduces trip hazards and keeps sites safe.
  • Multi-Surface Anchoring - Fix securely to soil, concrete, or asphalt.
  • Optional Stabilising Support - Add bracing if extra reinforcement is required.

SKU A105554

A secure fence locking system located at the feet of mesh fence panels. Versatile and reusable, the system is compatible with soil, concrete, and asphalt surfaces. Its compact, anti-trip design boosts safety in high-footfall areas, while resisting wind without additional support. Add stabilisers if required. Ideal for mesh fencing and temporary fencing environments where safety and stability are essential.

As low as £62.58 £75.10
In stock

Quickest Available Delivery: Quickest Available Delivery: 3 Day Delivery Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.



HERMEQ’s Mesh Fence Feet Locking System is a compact and secure anchoring solution for stabilising mesh fencing across varied ground types. Designed for safety and wind resistance, this locking system prevents fence displacement even in harsh weather and active pedestrian zones. Its low profile means it avoids creating tripping hazards on public or site walkways.

Engineered for repeat use, it’s supplied with your choice of fixings for soil, concrete or asphalt. The lightweight kit is easy to transport and install, with optional compatibility for additional bracing where added reinforcement is required.

  • Secure Anchoring – Prevents panel movement without external weights or ballast.
  • Compatible with All Terrain – Fixings available for different surface types.
  • Reusable Build – Deploy across multiple projects for long-term value.
  • Wind-Resistant – Holds firm during adverse site conditions.
  • Mesh Fence Locking System – Tailored for HERMEQ temporary fencing.

This mesh fence locking system is ideal for temporary fencing scenarios where pedestrian safety and stability are top priorities. The locking mechanism integrates directly at the base of HERMEQ’s mesh fencing panels, securing them in place with minimal ground disturbance. From site hoarding to public events, it performs reliably in dynamic environments.

With no stabiliser brace needed in most conditions, this compact system delivers excellent wind resistance and ease of use. However, for exposed or high-risk zones, optional bracing can be added seamlessly. The anti-trip profile keeps site access clear and unobstructed while anchoring the fence line with confidence.

Fixings are surface-specific:
• Soil: One flanged galvanised ground screw
• Concrete: Two M12 concrete screws
• Asphalt: Two M12 anchors with chemical resin

All parts are easy to install and dismantle without specialist tools. The system’s flat footprint prevents wildlife interference and avoids the nesting issues found with bulkier ground anchors. It’s also environmentally mindful and compact enough for efficient site-to-site transport.

HERMEQ stock a wide-range of Accessories, Temporary Fencing, Mesh Fencing & Permanent Fencing conforming to all required safety specifications and regulations.

Need any help? Contact HERMEQ Today.

Contact our team via phone 0800 043 2520, email sales@hermeq.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.

Used on construction sites, event spaces and public infrastructure zones, this mesh fence locking system anchors fencing panels with precision and reliability. It offers essential performance benefits over traditional block-weighted systems, cutting down installation time and increasing overall safety.

Key Kit Contents:

  • Fence Bracket: Powder Coated, 4.5KG, 290mm x 180mm x 120mm
  • Locking Strap: Powder Coated, 0.5KG, 35mm x 460mm x 5mm
  • Soil Fixing: 1x Flanged Ground Screw, 3KG, Hot Dip Galvanised, 530mm x 150mm x 68mm
  • Concrete Fixing: 2x M12 Screws, Zinc Plated
  • Asphalt Fixing: 2x M12 Anchors with Resin

Typical deployment areas:

  • Temporary fencing for pedestrian walkways
  • Mesh fencing for commercial build sites
  • Queue management zones at festivals or events
  • Perimeter protection for scaffolding or maintenance zones

The system’s simplicity makes it ideal for temporary fencing set-ups where speed and safety matter most. Its anti-trip form ensures no interference with foot traffic, keeping safety inspectors and insurers satisfied while avoiding delays from injury or incident.

Whether stabilising short-term fencing or improving compliance on longer-term projects, HERMEQ’s mesh fence locking system stands out for ease of use, reliability and adaptability.

  • Open Mesh Bracket: Powder Coated – 4.5KG – 290mm x 180mm x 120mm
  • Locking Strap: Powder Coated – 0.5KG – 35mm x 460mm x 5mm
  • Flanged Ground Screw (Soil): Hot Dip Galvanised – 3KG – 530mm x 150mm x 68mm
  • Concrete Screw: Zinc Plated – 0.1KG – M12
  • Asphalt Anchor: Zinc Plated – 0.1KG – M12

What fixings are included with the mesh fence locking system?
It includes one of three options: a flanged ground screw (soil), M12 concrete screws, or M12 asphalt anchors with resin. All fixings are project-ready.

Is the locking system easy to transport?
Yes, the lightweight and compact components make it highly portable. It can be carried and installed by one or two workers easily.

Can it be reused across multiple job sites?
Absolutely. The locking system is built from high-grade materials and is fully reusable after dismantling and cleaning.

Does it require stabilising braces?
Not always. It is wind-resistant without bracing in most settings, but supports add-on stabilisers for high-exposure areas.
