Helixon-S Wire Rope Fall Arrest

Product Highlights

  • Dual Orientation Use - Certified for both vertical and horizontal working at height equipment applications.
  • Multiple Size Options - Available in 3.5m, 7m, 10m, and 15m lengths with galvanised steel rope.
  • Braking & Absorber System - Reduces fall impact to <6kN with integrated shock absorption and load indicator.

SKU WO737698

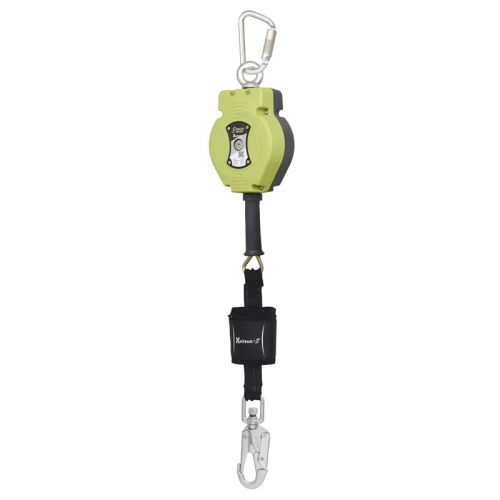

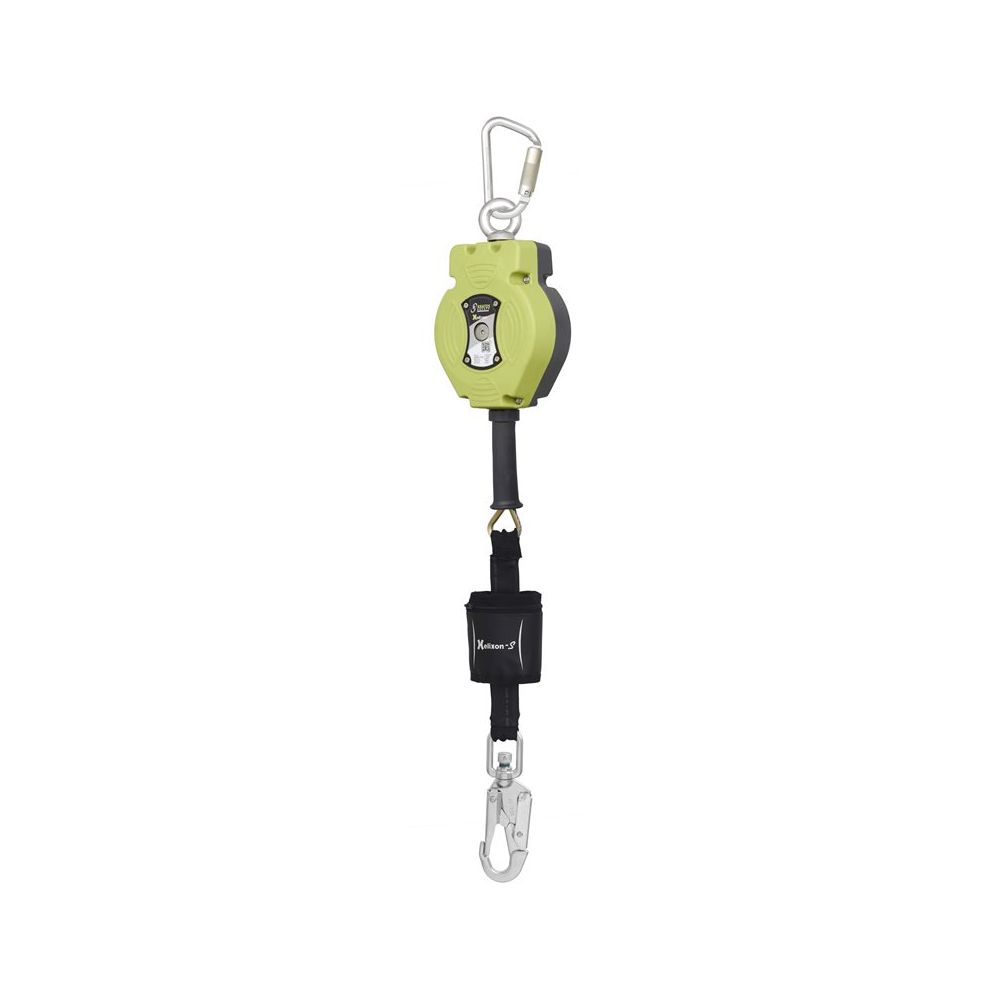

The Helixon-S Wire Rope Fall Arrester is a versatile unit for both vertical and horizontal use. Equipped with a galvanised 4.8mm steel rope, braking system, and energy absorber, it reduces fall arrest forces under 6kN. A key part of PPE for working at height and fall arrest systems, with multiple sizes available.
As low as £155.50 £186.60
In stock

Quickest Available Delivery: Quickest Available Delivery: 2 Day Delivery Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.



The Helixon-S retractable wire rope fall arrester is built for demanding industrial environments requiring horizontal or vertical fall arrest. Featuring a robust galvanised steel rope and advanced braking mechanism, it reduces impact force during a fall to below 6kN.

The device is housed in a durable polymer casing with an easy-inspection window and integrated carry handle. Offered in 4 length options — 3.5m, 7m, 10m, and 15m — it suits a wide range of working at height safety harness and anchor setups.

  • Galvanised Steel Wire - 4.8mm diameter cable with 12kN breaking strength for rugged durability.
  • Visual Load Indicator - Connector ref FA 50 203 20 alerts when unit has experienced a fall.
  • Quick Anchor Rotation - Swivel-mounted FA 50 225 23B connector allows smooth positioning.
  • Built-In Energy Absorber - Dissipates shock during fall events, minimising user injury.
  • Multiple Lengths - Choose 3.5m to 15m range to fit specific working at height equipment needs.

This retractable fall arrester is a versatile addition to any PPE for working at height. Offering dual-orientation certification, it provides protection in both vertical descent and horizontal restraint scenarios. With 12kN minimum breaking strength and up to 140kg load support, it is fully compliant for use in heavy-duty fall arrest system deployments.

The core component is a galvanised steel rope (4.8mm) that extends up to 15 metres depending on model. Its braking mechanism instantly engages in fall events, while the shock absorber minimises the force transferred to the user. This makes it a preferred choice for scaffold access, high platforms, rooftop work, or confined spaces.

A visual load indicator on the connector confirms whether the unit has absorbed a fall, aiding site teams during inspection and rotation. The outer polymer casing is reinforced for use in tough job sites and includes a clear window for tool-free internal access — ideal for compliance checks.

This device integrates seamlessly with any working at height safety harness system, offering maximum coverage across telecoms, utilities, energy, and construction sectors. Lightweight options (starting at 3.13kg) allow mobility for workers, while the 15m unit (8.01kg) supports longer-range fall protection tasks.

HERMEQ stocks a wide range of equipment for Working at Height including Edge Protection Systems, Fall Arrest Systems, and Harnesses & Lanyards conforming to all required safety specifications and regulations.

Need any help? Contact HERMEQ Today.

Contact our team via phone 0800 043 2520, email sales@hermeq.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.

Popular uses:

  • Roof edge work and safety line access
  • Utility towers and telecom structures
  • Scaffolding and rigging operations
  • Fall restraint zones on platforms
  • General vertical or horizontal fall arrest systems

Application:
This fall arrester forms a key element in any working at height equipment system that requires flexibility in movement, robust design, and trusted safety performance. Available in 3.5m, 7m, 10m and 15m options, each variant suits specific working heights and applications across high-risk job sites.

The unit’s 4.8mm galvanised steel cable provides exceptional abrasion resistance and durability. Its internal braking mechanism ensures a rapid halt during freefall, reducing peak arrest forces to below 6kN. With a visual load indicator built into the anchor connector, teams can confirm equipment readiness before each shift.

Whether installed for temporary vertical descent protection or long-term fall arrest system coverage on roofs, towers, or scaffolding, this unit is versatile and compliant. The FA 50 225 23B swivel connector allows movement without rope twist, especially important during lateral shifts on beams or ledges.

Each unit is housed in a tough polymer casing with a viewing window for fast internal inspection. This reduces time spent on maintenance and ensures regulatory safety checks can be performed without dismantling the unit.

The external energy absorber further enhances fall control, limiting shock transmission to the user and protecting from sudden jolt injuries. It’s designed to function in real-world industrial settings with sharp edges, heavy tools, and weather exposure.

Whether supporting individual PPE kits or being deployed as part of a full fall arrest system, this fall arrester ensures teams are protected, compliant, and operational with minimal downtime.

- Cable: Galvanised steel, 4.8mm diameter - Max user weight: 140kg - Internal brake system: ≤6kN arrest force - Breaking strength: 12kN - Certification: EN 360:2002, VG11.060 - Unit Sizes: 3.5m (3.13kg), 7m (4.08kg), 10m (4.82kg), 15m (8.01kg) - Connectors: FA 50 203 20 (load indicator), FA 50 225 23B (swivel) - Use: Horizontal and vertical

Is the Helixon-S fall arrester approved for horizontal use?
Yes, this unit is certified for both vertical and horizontal applications in fall arrest systems.

How do I know if the device has been used in a fall?
The connector features a visual load indicator that displays when the device has been activated, alerting the user that inspection is required.

What cable lengths are available?
It’s available in 3.5m, 7m, 10m, and 15m options, allowing flexible deployment based on height risk.

Can this be used with a working at height safety harness?
Absolutely. The unit integrates with any EN-compliant harness and anchor system used in professional PPE for working at height.
