HERMEQ NorwayTrench Sheet - FLP 600/6.0
Product Highlights
- 6.0mm thickness - Heavy-duty design suited for deeper groundworks and longer trench runs.
- Interlocking profile - Provides added stability and alignment for secure trench sheeting.
- S275JR steel grade - Ensures strength, reliability, and resistance to challenging conditions.
Alternative Products
SKU TR1768
The FLP 600/6.0 trench sheet is a heavy-duty steel sheet pile ideal for deeper trench sheeting projects. Manufactured from durable S275JR steel, it interlocks for secure installation. Commonly used with trench sheets and sheet piles, it's a trusted solution for demanding groundworks requiring reliable trench sheeting and long-lasting structural support.
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery
The FLP 600/6.0 trench sheet is built for high-performance trench sheeting applications, offering a reinforced 6.0mm thickness and interlocking profile for added stability. Designed for more demanding excavation conditions, this steel sheet pile supports deeper trench structures with ease. Fabricated from S275JR grade steel, it provides superior durability for heavy-duty ground protection.

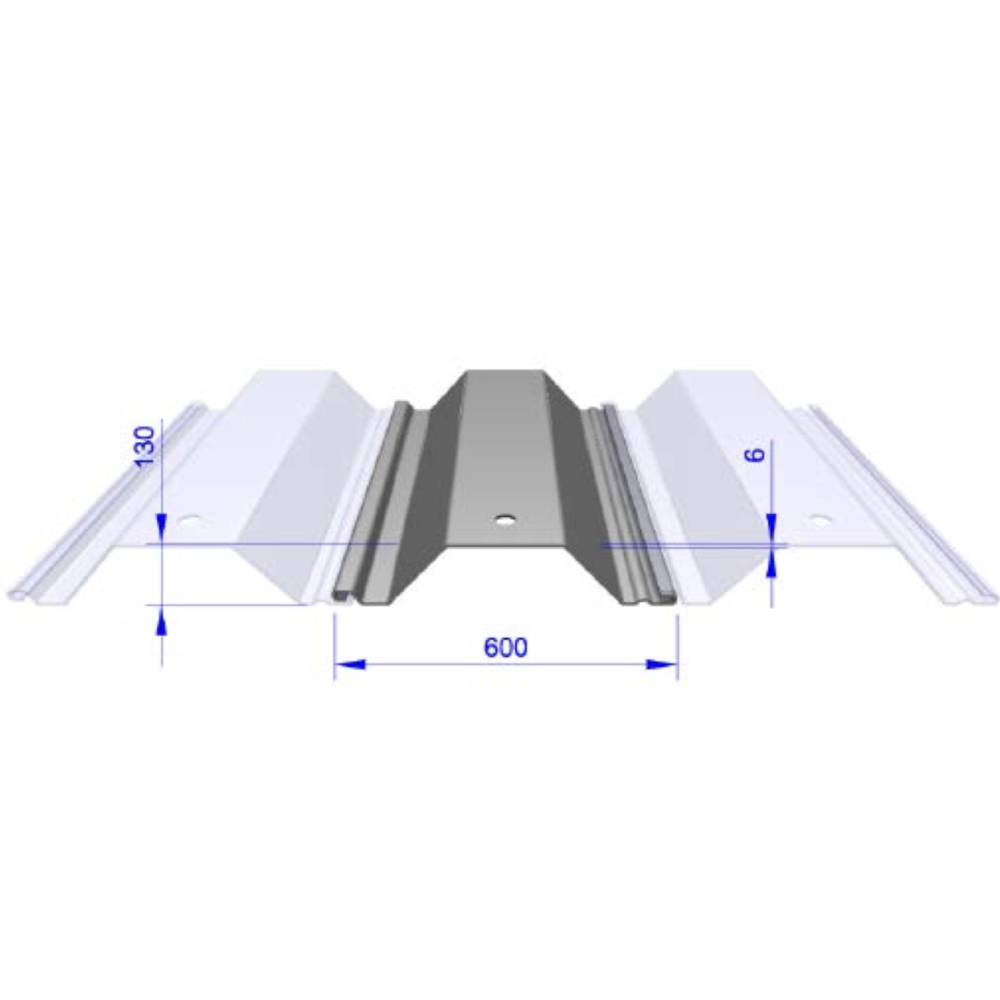

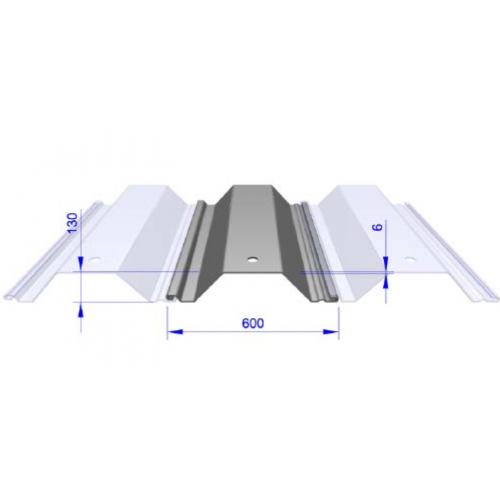

Thanks to its wider 600mm effective width and 130mm depth, the FLP model ensures optimal coverage while reducing installation time. Whether securing the walls of a trench or acting as a temporary retaining solution, it maintains structural integrity throughout the project lifecycle.
- 600mm wide and 130mm deep - Ideal dimensions for trench sheets requiring maximum coverage and minimal handling.
- 6mm thick S275JR steel - Ensures robustness and longevity under pressure and heavy loads.
- Supplied with handling hole - Allows easy lifting; extra handling holes available on request.
- Recommended with guide walings - Supports easier installation and alignment during trench sheeting operations.
- Trench safety compliant - Reduces the risk of ground collapse and aids in safer excavation work.
The FLP 600/6.0 is a preferred solution in construction sectors requiring dependable sheet piles and trench sheets. It is frequently used for drainage systems, pipeline laying, temporary works, and excavation protection. Its interlocking profile simplifies pitching while ensuring a secure and reliable fit. Installers should always follow safety guidelines when handling and driving sheets.
This trench sheet model is particularly effective where steel sheet pile strength is essential, such as in civil engineering, infrastructure development, and utilities installation. It mitigates ground pressure and groundwater ingress when paired with appropriate guide walings and driving caps.
HERMEQ stock a wide-range of Trench Sheets, Groundworks, Trench Covers & Road Plates conforming to all required safety specifications and regulations.
Need any help? Contact HERMEQ Today.
Contact our team via phone 0800 043 2520, email sales@hermeq.com or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
- Trench sheets must be installed and extracted by competent personnel with appropriate equipment.
- Always use a driving cap to avoid damage to the top of the trench sheet during insertion.
- Use of a quick release shackle for extraction is not advised due to the risk of spring mechanism damage.
- Stack sheets in bundles of 6, staggered with timber spacers to reduce injury risk and improve handling.
- Extra care should be taken in windy conditions—always use at least two people for pitching.
- HERMEQ can supply guide walings and piling frames upon request to assist trench sheeting installation.
- Do not lift sheets over personnel and always monitor trailing ropes to avoid snag hazards.
- Provides limited protection against groundwater but is not designed for high water flow areas.
| Effective Width | 600mm |
| Depth | 130mm |
| Thickness | 6mm |
| Steel grade | S275JR |
What is trench sheeting used for?
Trench sheeting is used to support excavation sides and prevent ground collapse during trench work.
Can the FLP 600/6.0 trench sheet be reused?
Yes, these steel sheet piles are designed for reuse if extracted carefully using appropriate tools.
What equipment is needed for safe installation?
An excavator matched to site conditions, driving caps, and guide walings are recommended for proper installation.
Are these trench sheets compliant with UK safety standards?
Yes, HERMEQ trench sheets meet all relevant UK site safety norms and guidelines for trench works.
