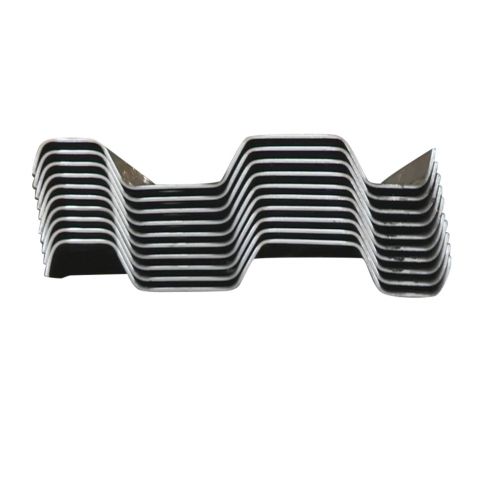

Trench Sheets - KKD 600/6
The HERMEQ KKD 600/6 overlapping trench sheets are our most popular lap trench sheets, although we do offer a lighter 3.5mm Standard Lap Profile Trench Sheet if required. KKD 600/6 trench sheets are used during excavation works to shore up groundworks and hold the ground back, stopping the walls of the excavations from caving in. As they are 6mm thick, they are usually used for deeper excavations than what our 3.5mm standard lap trench sheets are used for. We manufacture our KKD600/6 sheets in the Midlands, we can deliver these through our UK-wide depot network on our internal haulage.
All of our KD6 sheet piles are manufactured by HERMEQ in the UK from S275 grade steel. HERMEQ Steel is a member of the HERMEQ Group, enabling us to source all of our raw materials internally. Manufacturing KKD 600/6 sheet piles in-house allows us to control the sheet pile quality and gives us full material traceability.
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery
Trench sheets are used to shore up trenches & ground works whilst excavation works take place in order to provide a safe working environment. The sheets are primarily designed to be handled and installed by excavators using the bucket to drive the sheets vertically into the ground. As standard our KKD600/6 Trench Sheets come with one hole, normally 40mm in dia, for handling and pitching the sheets, although we can provide a second hole upon request.
The KKD600/6 overlapping trench sheet is one of the most popular sheets in Europe and is especially popular amongst hire companies because of its versatility and durability. Through HERMEQ B.V & HERMEQ IE we export these trench sheets across the world.
These KKD 600/6 trench sheets are popular because they are a durable heavy duty standard lap trench sheet at 6mm thick, whilst still being relatively easy to handle and install. KKD trench sheets are installed side by side, with the edge of one KKD trench sheet overlapping the next trench sheet. The effective width of the KKD 600/6 trench sheets is 600mm. This means that when working out how many KKD sheets are needed for an excavation you simply work out the total distance required, convert it to millimetres & divide by 600.
The KKD600/6 trench sheets weigh 37.5kg per meter, simply multiply 37.5kg by the length of your KKD600/6 trench sheet to get the total weight of the sheet pile.
KKD 600/6 Properties
| Effective Width | 600mm |
| Depth | 78mm |
| Thickness | 6mm |
| Steel grade | S275JR |
HERMEQ stock a wide-range of Trench Sheets, Groundworks, Trench Covers & Road Plates conforming to all required safety specifications and regulations.
